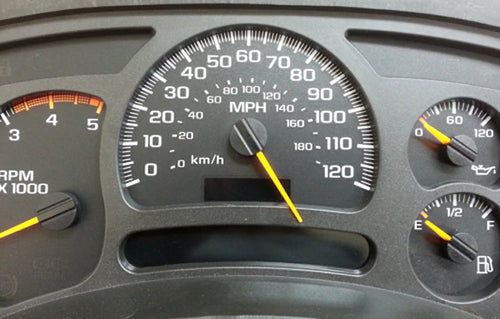

You turn the key, the engine fires up, but your dash is dark. No speedometer, no fuel gauge, maybe just a lonely Check Engine Light staring back. You are not alone. Chevy Silverado gauges not working is a widespread issue across model years from 2002 to 2019 and beyond. Whether it is a total blackout, flickering dials, or warning lights flashing like a disco, the root cause is usually electrical and often something simple you can fix yourself.
This guide cuts through the confusion with actionable diagnostics, model-specific fixes, and step-by-step troubleshooting based on real-world data. You will learn how to pinpoint whether the problem is a $5 fuse, a corroded ground wire, or a failed instrument cluster. No fluff, no guesswork, just proven solutions used by mechanics and DIYers alike.
Reset the System First
Before tearing into your dash, try a system reset. Many gauge failures stem from temporary glitches in the Body Control Module (BCM) or Instrument Panel Cluster (IPC).
Battery Disconnect Method
- Turn off the ignition and remove the key.
- Disconnect the negative battery terminal.
- Wait 10 to 30 minutes to fully discharge residual power.
- Reconnect the terminal and start the truck.
This forces a hard reboot of the BCM and IPC. If your gauges return, the issue was likely a software hiccup or voltage spike. Note that stored radio presets and trip data may be erased.
Manual Cluster Reset
Some models respond to a built-in reset sequence:
- Turn the key to OFF.
- Press and hold the trip/fuel button for 5 seconds.
- Turn the key to ON without starting the engine (transmission in Park or Neutral).
- Release the button. The cluster should sweep all gauges and flash warning lights.
If the gauges move during this test, the cluster is likely functional, pointing to a power or communication issue instead.
Check Critical Fuses
Blown fuses are the most common cause of dead gauges. The under-hood fuse box is your first stop.
Locate and Test Key Fuses
Open the fuse box on the driver’s side of the engine bay. Use the diagram on the lid to find:
- Fuse 48 (IPC/DIC), 10A, common in 2007+ models
- IPC.DIC, 10A
- IGN E, 10A
- SEOB1, 15A
- Cigarette Lighter Fuse, powers the OBD2 port; if dead, scanners cannot connect
How to Test:
– Visually inspect for a broken filament.
– Use a fuse tester or multimeter for accuracy.
– Replace blown fuses with exact amperage matches.
If a new fuse blows immediately, a short circuit exists in the wiring or cluster. Do not keep replacing fuses without diagnosing the root cause.
Clean Corroded Ground Connections
Poor grounding causes flickering, phantom power, and total gauge failure. Silverados are notorious for ground issues, especially in humid or salty climates.
Key Ground Points to Inspect
- Driver’s Door Sill, under the rubber mat; a major chassis ground where corrosion kills dash power
- G200, right side of dash near A-pillar (behind panel)
- G203, left side of dash near A-pillar
- Battery to Frame, main negative cable connection
- Headlight Assembly, right-side ground wire can cause flickering
Cleaning Procedure
- Disconnect the negative battery terminal.
- Unbolt the ground wire.
- Use a wire brush or grinder to remove corrosion until metal is shiny.
- Reattach and tighten securely.
A 2015 Silverado owner restored full gauge function after cleaning the door sill ground with a grinder. No parts replaced.
Inspect the 12-Pin Splice Pack
A hidden culprit in many Silverados is the 12-pin splice pack behind the light switch on the driver’s side.
Why It Fails
- Vibration loosens connections.
- Moisture causes corrosion.
- Wires pull out over time.
Location: Near the transfer case shift module, behind the dash.
How to Check
- Remove the lower dash panel.
- Unplug the 12-pin connector.
- Inspect for bent or missing pins, green corrosion, and loose wire fits.
Fix: Replace with a salvage-yard unit (~$42) or repair individual pins. Label or photograph wiring before disconnecting; colors include Light Brown (F), White (E), Purple (D), and Blue (C).
Test OBD2 Port Power
If your scanner will not connect, the problem may be upstream.
Check Pin 16 Voltage
- Turn the key to ON.
- Use a multimeter to test Pin 16 of the OBD2 port under the dash.
- You should read 12 volts.
No power? Check the Cigarette Lighter Fuse, IGN E Fuse, and wiring break between fuse box and OBD2 port. No OBD2 power means no diagnostics, so fix this first.
Diagnose Data Bus Communication Loss
When gauges die and ABS, Airbag, Security, and Brake lights flash, it is likely a data bus failure.
Symptoms of Bus Failure
- Gauges stuck at zero
- Multiple warning lights on
- Scanner cannot communicate
- Power windows and locks may fail
What It Means
The IPC, BCM, and ECM communicate via a serial data line. A break or failed module kills communication.
Isolation Test
- Disconnect non-essential modules (radio, aftermarket devices).
- Reboot the system.
- If gauges work, reconnect modules one by one to find the culprit.
If the problem returns when the radio is reconnected, it may need VIN reprogramming after replacement.
Instrument Cluster Internal Failure
If power, grounds, and data are good, the cluster itself is likely faulty, especially in 2003–2007 models.
Common Internal Failures
Solder Joint Cracks
- Caused by heat and vibration.
- Leads to intermittent or total failure.
- Re-solder cracked joints for a temporary fix, or replace the cluster.
Stepper Motor Failure
- One or more gauges stick (fuel at empty, temp at max).
- Motors can be replaced, but cluster removal is required.
Circuit Board Damage
- Burnt resistors or LED failures.
- Often caused by voltage spikes or overheating.
2003 Model Recall
GM issued a recall for 2003 Silverado instrument clusters. Even out-of-warranty trucks often received free parts; you paid only labor. If you own a 2003, contact a dealer with your VIN because coverage may still apply.
Body Control Module (BCM) Failure
The BCM controls accessories and communicates with the cluster. When it fails, gauges often go down with it.
Signs of BCM Failure
- Gauges dead plus power windows and locks not working
- HVAC blower motor inoperative
- Battery drain after shutdown
- Voltage remains on the negative terminal until the BCM fuse is pulled
Diagnosis
- Test fuses related to BCM (SEOB1, IGN E).
- Check for stored BCM codes with a capable scanner.
- Try re-soldering the BCM circuit board as a DIY temporary fix.
Replacement
- New or remanufactured BCM required.
- Must be programmed to the vehicle.
- Some units need VIN pairing, so consult a dealer or locksmith.
Replace Faulty Fuse Box (2014–2019 Models)
For 2017–2019 Silverados, the fuse box assembly itself can fail.
Symptoms
- Intermittent power loss
- Multiple unrelated systems fail
- Fuses blow repeatedly
Replacement Steps
- Disconnect battery.
- Remove fasteners with a powered wrench.
- Unclip wiring harnesses.
- Unscrew crossbar bolts.
- Install new box and reconnect.
Cost:
– Aftermarket: under $50
– OEM: ~$87.55
– Labor: $75–$130
This repair requires basic tools and 1–2 hours.
Wiring Harness Issues (Last Resort)
If all else fails, especially in 2015 models with chronic electrical gremlins, the wiring harness may be compromised.
When to Suspect Harness Failure
- Grounds and fuses are perfect
- Multiple resets do nothing
- Damage from rodents, moisture, or poor repairs
Repair Options
- Localized repair: splice and insulate damaged sections.
- Full replacement: expensive and labor-intensive, best left to professionals.
Rodents chewing wires under the dash is more common than you think. Inspect thoroughly.
Model-Specific Fixes at a Glance
| Model Year | Likely Cause | Quick Fix |
|---|---|---|
| 2002 | Blown fuses, analog cluster issues | Check Fuse 48, replace fuse |
| 2003 | Recall cluster defect | Contact dealer for free cluster |
| 2004 | Gauges stuck at zero | Reset cluster, check grounds |
| 2006–2007 | Data bus failure, flashing lights | Replace cluster, check 12-pin |
| 2009 | BCM-related, low voltage | Battery reset, clean grounds |
| 2014–2019 | Fuse box assembly failure | Replace entire fuse box |
| 2015 | Ground corrosion, harness issues | Clean door sill ground, test OBD2 |
Pattern: 2003–2007 leans toward cluster failure, while 2014+ leans toward fuse box or ground issues.
Prevent Future Gauge Failures
Maintenance Tips
- Inspect grounds annually, especially in winter climates.
- Keep spare fuses in the glovebox (10A and 15A).
- Park in shade to reduce dashboard heat stress.
- Avoid cheap aftermarket radios that do not support VIN programming.
- Check battery voltage regularly because low voltage stresses electronics.
After Battery Replacement
Always perform a battery disconnect reset to prevent “RI” errors or dead gauges. After any electrical work, cycle the key 3–5 times to reinitialize modules.
Final Diagnosis Flowchart (Quick Reference)
- Try battery disconnect reset (30 mins).
- Check fuses: IPC.DIC, Fuse 48, IGN E, Cigarette Lighter.
- Clean grounds: Door sill, G200, G203, battery.
- Test OBD2 Pin 16 for 12V.
- Inspect 12-pin splice pack.
- Check for data bus symptoms (flashing lights, no scan).
- Suspect cluster or BCM failure.
- Replace or rebuild cluster/BCM with VIN programming.
Frequently Asked Questions About Chevy Silverado Gauges Not Working
Why are my Silverado gauges not working but the truck runs fine?
The cluster likely lost power or data communication while the engine continues to run independently. Check Fuse 48, IPC.DIC, and IGN E first, then inspect ground connections at the door sill and G200/G203.
Can a blown fuse cause all gauges to stop working?
Yes. A single blown fuse like Fuse 48 or IPC.DIC cuts power to the entire instrument panel cluster. This is the most common and cheapest fix for dead gauges.
How do I reset my Silverado instrument cluster?
Disconnect the negative battery terminal for 10–30 minutes, then reconnect. Alternatively, hold the trip/fuel button while turning the key to ON (without starting) to trigger a manual cluster sweep.
What causes gauges to flicker on and off?
Loose or corroded ground connections, especially at the driver’s door sill or headlight assembly, cause intermittent power loss. Cleaning these grounds with a grinder often resolves flickering.
Is there a recall on 2003 Silverado instrument clusters?
Yes. GM issued a recall for 2003 Silverado clusters, and many out-of-warranty trucks received free replacement parts (owner paid labor only). Contact a dealer with your VIN to check current coverage.
How much does it cost to replace a Silverado instrument cluster?
Replacement units range from several hundred to over $1,000 depending on new versus remanufactured and programming requirements. Rebuild services like ISS Automotive offer lifetime warranties at lower cost.
Key Takeaways for Fixing Chevy Silverado Gauge Problems
Most Chevy Silverado gauges not working issues are solvable without replacing the cluster. Start with fuses and grounds because they fix the majority of cases. Use battery resets, voltage tests, and model-specific knowledge to avoid costly guesses.
If you have tried everything and gauges still fail, the cluster or BCM is likely dead. Consider a rebuild from a trusted service for a lifetime warranty fix, or contact your dealer about recall coverage if you own a 2003 model. Your next step: grab a multimeter and test Fuse 48 right now.
